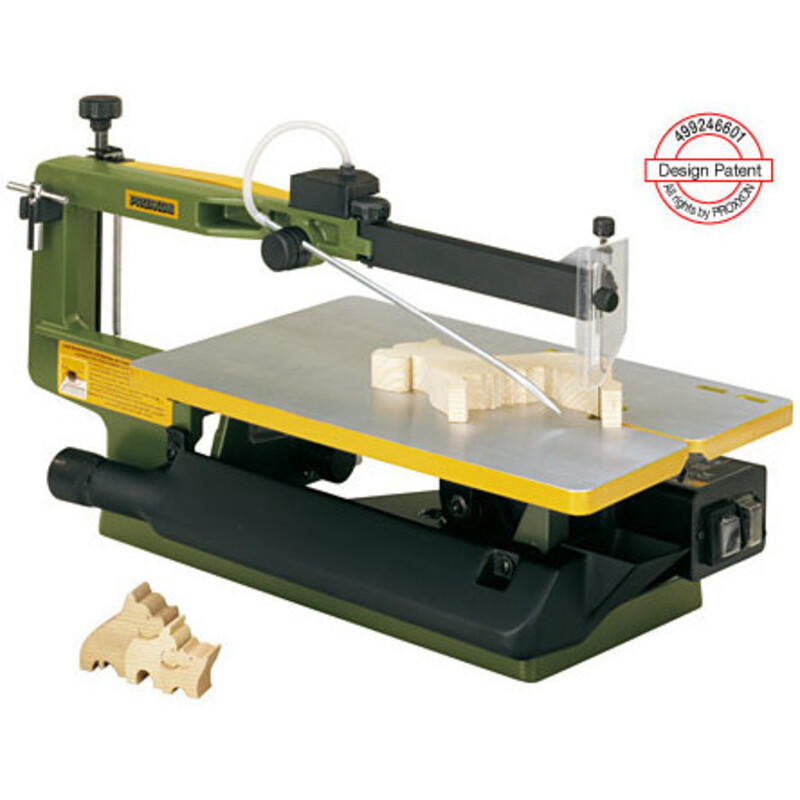

Solid construction: Feet with vibration dampers made of cleanly CNC-worked and powder-coated cast iron. For safe positioning and vibration-free operation. With extremely light magnesium arm reducing the weight of the moving mass compared to die-cast aluminium by about 40%! Reach 460 mm!
Extremely light and strong magnesium saw arms with good vision at the object cut. Blow-out device with adjustable nozzle. Supplied with a nozzle for connection to a hoover.

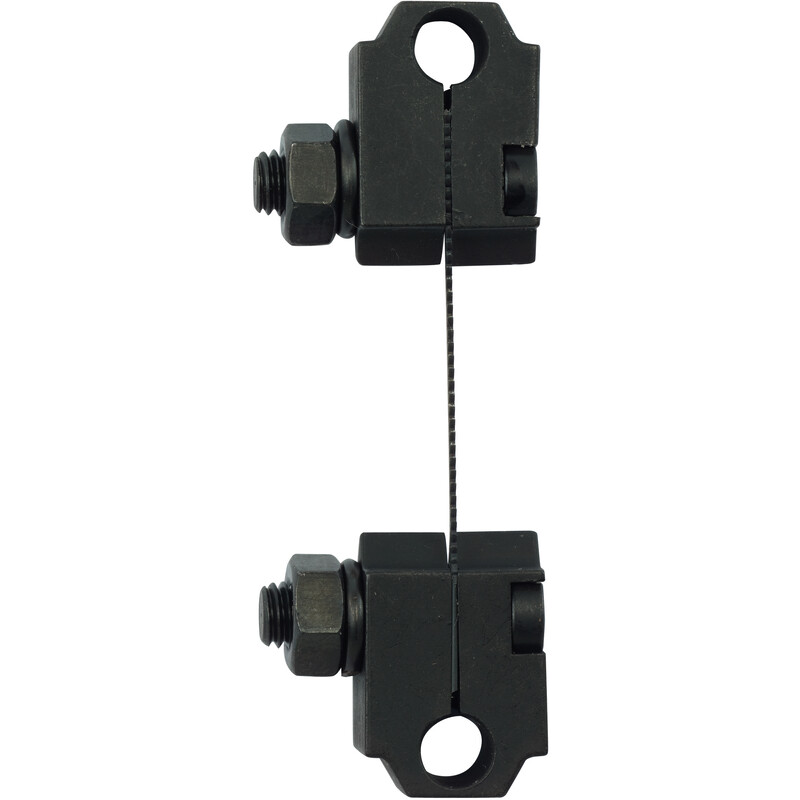

Cast aluminium table (400 x 250 mm) can be unlocked and moved to the rear for easy blade change. Normal precision blades (without lugs) are firmly fixed by sliding stones. This ensures precise alignment. The machine also has a device for blades with lugs (use without sliding stones). A rotary knob allows sensitive fixing of the saw blades.
The table can be adjusted from 5 to 50° (see bottom right).
Cutting capacity in wood 60 mm, in non-ferrous metal (depending on type) 10 - 15 mm. Can also cut plexiglass, fibreglass, foam, rubber, leather or cork without problems. Including 5 coarse and fine saw blades.
Technical data:
- 230V
- Powerful brushless motor with 2 speeds (205 W)
- Reach 460 mm
- Adjustable from 900 or 1,400 rpm
- Stroke 18 mm
- Table size 400 x 250 mm
- Maximum cutting depth 65 mm, 32 mm for 45° mitre
- 580 x 320 x 300 mm
- Weight approx. 20 kg.
Properties
- 27094
- Proxxon
- 4006274270947
- 640 x 370 x 370 mm
- 230V - Monophase
